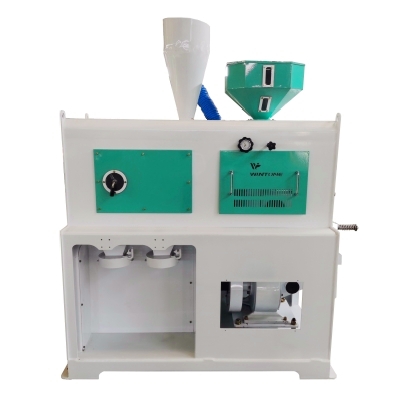

HTPZ28 Soybean Peeling and Polishing Machine
HTPZ28 bean peeling and polishing unit is mainly used for peeling soybeans, peas, and for the automatic separation of skins and kernels as well as the automatic separation of skin powder. This equipment adopts a dry, cold dehulling technology, the procesing of raw grains by this machine does not require heating and conditioning, and it is especially suitable for use in small and medium-sized bean processing plants or soybean product factories.
Working Principle
Cleaned soybeans enter the peeling machine, adjust the gap between the grinding heads, and observe the material particles to adjust the tightness; After peeling, the beans enter the polishing machine, and by adjusting the outlet pressure valve, the pressure can be reduced or increased to achieve the desired result; The export pressure valve has multiple functions such as peeling, purification, and adjusting production volume. At the same time, observe the separation of materials and adjust the air regulating plate to ensure an appropriate air volume. Under the action of the fan, the bran powder enters the bran powder separation process through the shaker, and is separated by a 30 mesh sieve plate.
Performance Advantages
1. Strong specificity: The high-strength and wear-resistant peeling roller and sieve designed for soybeans can ensure the stability of the equipment in industrial production.
2. High output and low power consumption: After countless production practices, it has been selected with low energy consumption and high efficiency.
3. High yield of finished products: Directly breaking the skin and separating the outer layer, with less crushing of the beans, achieving high yield of finished products and improving enterprise efficiency.
4. Good polishing effect: The polished beans are smooth and bright, significantly improving the quality of the finished product.
5. Clean separation of skin debris: The skin debris separation and collection system effectively separates and collects skin debris.
6. Mechanical full automation: intelligent operation, high degree of automation.
Finished Product
Technical Parameter
| Type | Capacity(t/h) | Peeling Rate(%) | Rated Voltage(v) | Power(kw) | Peeling Spindle Speed(r/min) | Polishing Spindle Speed(r/min) | Weight(kg) | Dimension(mm) |
| HTPZ28 | 0.7-1 | 90-98 | 380 | 15 | 850 | 1042 | 738 | 1789×815×2030 |
