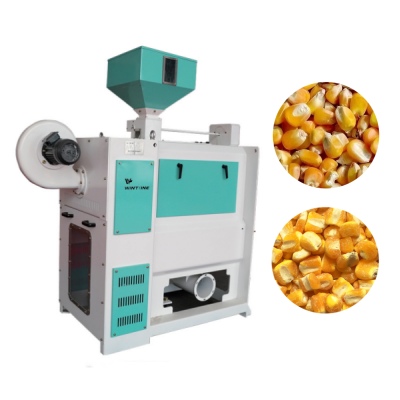

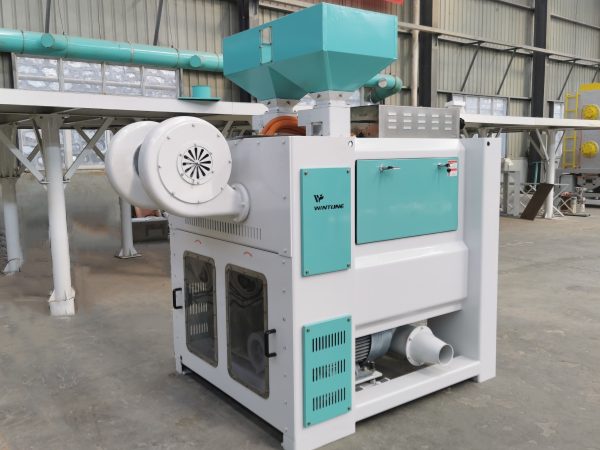

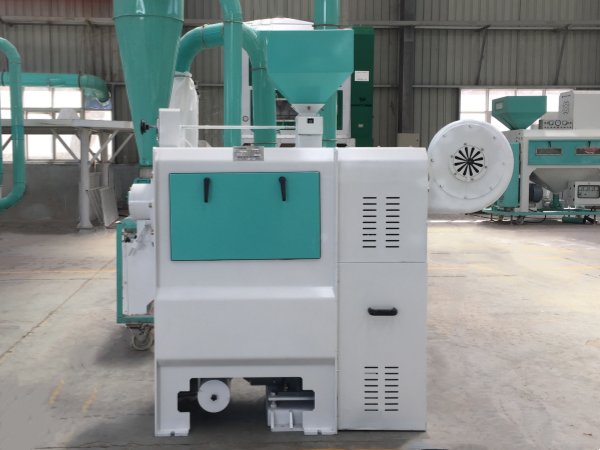

MTPS Fine Corn Peeling Machine
The MTPS Fine Corn Peeling Machine is used in the peeling and germ removing section in corn processing industry. It utilizes emery roll that rotates with high speed to cut and rub the corn bran continuously and destroys the bonding strength between the maize bran and the corn endosperm and the germ, which makes corn bran separated.
Working Pricinple
MTPS series maize bran removing machine utilizes high-speed rotating emery blade to cut and rub the corn bran and damage the bonding strength between the corn and the endosperm and the germ so as to make the corn bran, wheat bran or bean bran separated. It can also separate the corn germs and black spots during peeling process. The internally installed effective air draft chamber can collect the bran from the peeling process.
Features
1. Inside of the fine corn hulling machine installs the air draft dedusting system, which ensures the best sanitation condition and reliability of maize bran discharging.
2. Fine corn hulling machine has durable emery roll and less wearing parts, this feature makes fine maize huller easily operated and maintained.
3. Fine corn hulling machine can adjust feeding speed and outlet pressure to increase the friction and pressure in the peeling chamber so as to produce uniform and reliable quality end products.
4. Stable corn flow and the efficient air indraft system inside of the machine makes the peeling process moderate so as to reduce corn loss in processing and ensures the profit maximizatio.
Finished Product
Technical Parameter
|
Type |
Yield(t/h) |
Power(kw) |
Air Suction(m³/h) |
Wind Pressure(pa) |
One Peeling Rate(%) |
Twice Peeling Rate(%) |
Weight（kg） |
Dimension(mm) |
|
MTPS18A/B |
2-2.5 |
18.5-22＋2.2 |
800-1200 |
3660-3720 |
65 |
95 |
760 |
1935×735×1892 |
|
MTPS25A/B |
3-4 |
22-30＋2.2 |
1000-1500 |
3660-3720 |
65 |
95 |
805 |
2013×693×2222 |
|
MTPS30A/B |
4-6 |
37-45＋2.2 |
2600-3400 |
4500-5500 |
65 |
95 |
1050 |
2191×950×2222 |
|
MTPS25(A/B)×2 |
6-8 |
44-60＋3 |
4000-6000 |
1800-2100 |
65 |
95 |
1500 |
2033×1450×2222 |
|
MTPS30(A/B)×2 |
8-12 |
74-90＋3 |
5000-7000 |
4500-5500 |
65 |
95 |
1950 |
2332×1450×2222 |
