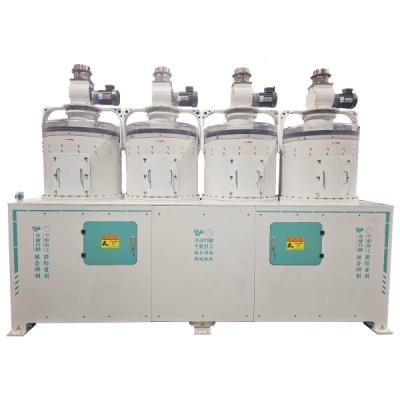

YHT700IV Grain Soybean Peeling and Splitting Machine
YHT700IV Intelligent grain peeling and splitting machine is a new type of grain peeling equipment jointly developed by WINTONE & COFCO. It adopts an intelligent control system and can be used for peeling and splitting processing of soybeans, peas, mung beans, red beans, black beans and other grains. It can process soybeans for 45-50 tons per hour, and the primary peeling rate is ≥ 93%.
Working Pricinple
YHT700IV intelligent grain peeling and cracking machine is used for grain peeling in large and medium bean processing enterprises.
The soybean peeling and splitting machine adopts a design with an alloy rubbing plate to rub and crack soybeans and then separate the bean skin and kernel through the separation chamber, achieving a high peeling rate of 93%, and reducing the energy consumption of the peeling process.
With just one peeling machine, the peeling rate can meet the requirements of the enterprise. It also improves the subsequent processes' oil extraction rate, increasing the enterprise's efficiency and social benefits.
Features
1. Alloy rub design
Adopts the design with alloy rubbing plate to rub the grains and break the grains.
2. Low power consumption and high peeling rate
Low power consumption, more energy-saving, power only 95kw; The one-time peeling rate is over 93%, far exceeding similar equipment on the market.
3. Intelligent control system
YHT700IV intelligent grain peeling and splitting machine adopts frequency conversion speed regulation and human-machine interface intelligent control system.
4. Improve oil yield
Reduce the oil absorption of soybean meal and greatly increase the oil yield of the product.
Finished Product
Technical Parameter
|
Model |
Capacity(T/H) |
Rated Voltage(V) |
Power(KW) |
Weight(T) |
Size(L*W*H)(MM) |
|
YHT700IV |
45-50 |
380 |
95 |
7.5 |
4000*2200*3230 |
